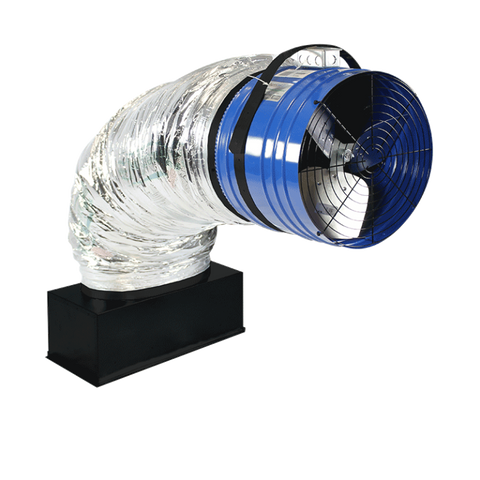

QuietCool QC CL-3100 Fan & Control Package
Includes a QC CL-3100 whole house fan, a high/low switch, and a timer with a plate cover.
The QuietCool QC CL-3100 is an energy efficient whole house fan that delivers 3248 cubic feet per minute of airflow while operating very quietly.
The fan hangs from the rafters and is connected to an attractive ceiling grille with insulated fexible duct. This keeps the fan noise away from the ceiling opening so it is very quiet. The ceiling grille is a nice cube core grille, not the rattly louvers like on the old fashioned fans.
The QC CL-3100 whole house fan has insulated dampers that close when the fan is not running. This keeps cool (or warm!) air from leaking into the attic.
This fan only takes a few hours to install. A hole is cut in the ceiling or vertical wall where the fan is going to be installed. The ceiling boot is placed in the hole and the grille is screwed into it through the drywall. The fan is hung from the rafters with the attached straps. The duct is connected to the ceiling boot and the insulation is moved back around the boot. At this point all that remains is the electrical hookup.
These fans move a lot of air and the air needs to be able to get out of the attic. Exhaust ventilation is required for the fan to operate properly.
You may be eligible to upgrade this fan to a Trident fan for free. The Trident line has a removable grille and a 15 year warranty. Just put a note in the comments section!
|Motor Voltage||120V AC|
|Motor Amperage||2.5 Amps Low Speed|
|5.2 Amps High Speed|
|Power Consumption||317 Watts Low Speed|
|634 Watts High Speed|
|Motor Speed||1560 RPM|
|Air Flow @ 0.1. SP||1624 CFM Low Speed|
|3248 CFM High Speed|
|Max. Sound Level in Room||48 dB|
|R Value at Closed Damper||R 4.2|
|Ceiling Rough Opening||16" x 22"|
|Intake Grille Color||White|
|Shipping Weight||68 lbs|
|Manufacturer's Waranty||10 years|
|Exhaust Ventilation Required||578 si/4 sf|
|Effective For Areas of||730 to 1800 square feet|
